Up to 4-ch IP camera input (up to 8 MP) Up to 40/80 Mbps incoming bandwidth, and 80 Mbps outgoing bandwidth Support H.265+/H.265/H.264+/H.264 video compression

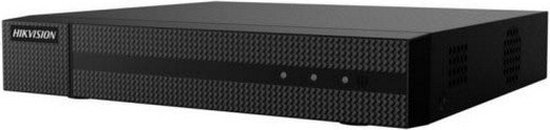

Model HWN-4104MH Video and Audio IP Video Input 4-ch Up to 8 MP resolution Incoming bandwith 40 Mbps Outgoing bandwith 80 Mbps HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video output mode HDMI/VGA simultaneous output CVBS output N/A Audio output 1-ch, RCA (Linear, 1 KΩ) Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Decoding Format H.265+/H.265/H.264+/H.264 Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous playback 4-ch Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Stream type Video, Video&Audio
Auxilliary interface SATA 1 SATA interface Capacity Up to 8TB capacity for each disk USB interface Rear panel: 2 × USB 2.0
Network Remote connection 16 Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
General Power supply 12 VDC, 1.5A Consumption (without HDD) ≤ 10 W Working temperature -10 to +55º C Working humidity 10 % to 90 % Dimensions 265 × 225 × 48 mm Weight (without hard disk) ≤ 1 kg
